Official Technical Specifications
Construction Type

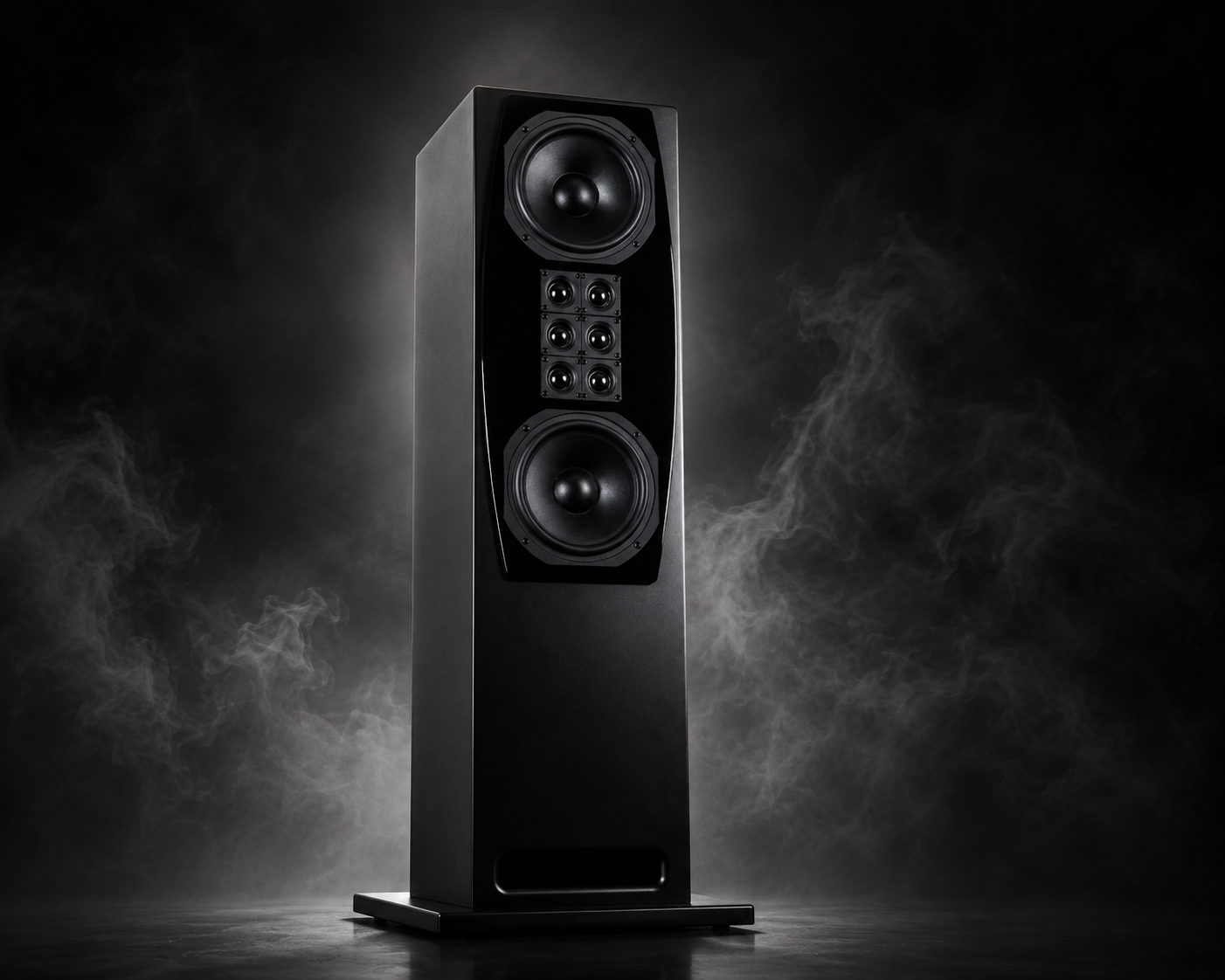

3-way Floorstanding Speaker
Tweeter / Midrange Driver
6 × 24 mm (1″) Dome Tweeters
Polymer Reinforced Japanese Silk
Woofer Driver
2 × 200 mm (8″) Cone Drivers
Mixed Coated Long Fiber Pulp Material
Frequency Response
29 – 30,000 Hz (±3 dB)
Nominal Impedance
4 – 8 Ohm
Sensitivity
91.2 dB (2.83 V / 1 m)
Power Handling
600 W Short Term (IEC 268-5)
350 W Long Term (IEC 268-5)
Connections
Gold Plated
Bi-Wiring / Bi-Amp Ready
Sound Tuning Settings
Bass Reflex / Sealed
Treble Adjustable (3 Modes)
Crossover Frequency
950 Hz / 2,500 Hz
Filter Steepness
Woofer Driver : 12 dB
Midrange Driver : 18 dB
Tweeter : 18 dB
Cover
Magnetic Black Fabric
Dimensions (W × H × D)
324 (455) × 1075 (1112) × 274 (402) mm
Including Baseplate and Spikes
Weight
33.2 kg
Available Colours
Matte Black
8 Layers Anti-Reflection Paint
Gloss Black Baffle
Warranty
5 Years
Quantity
1 PCS
